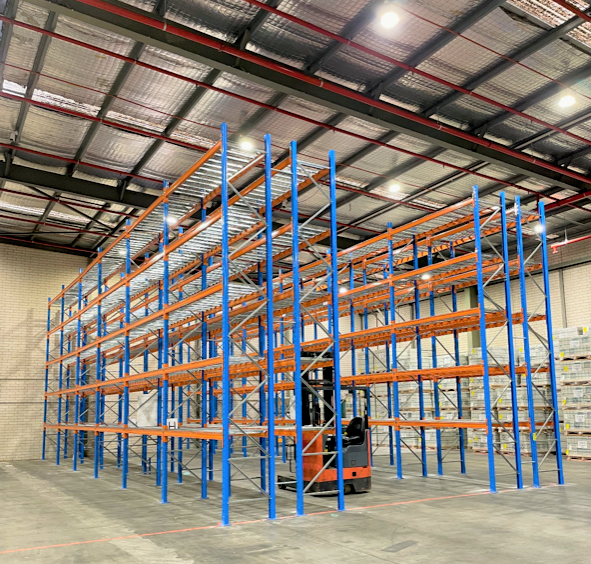

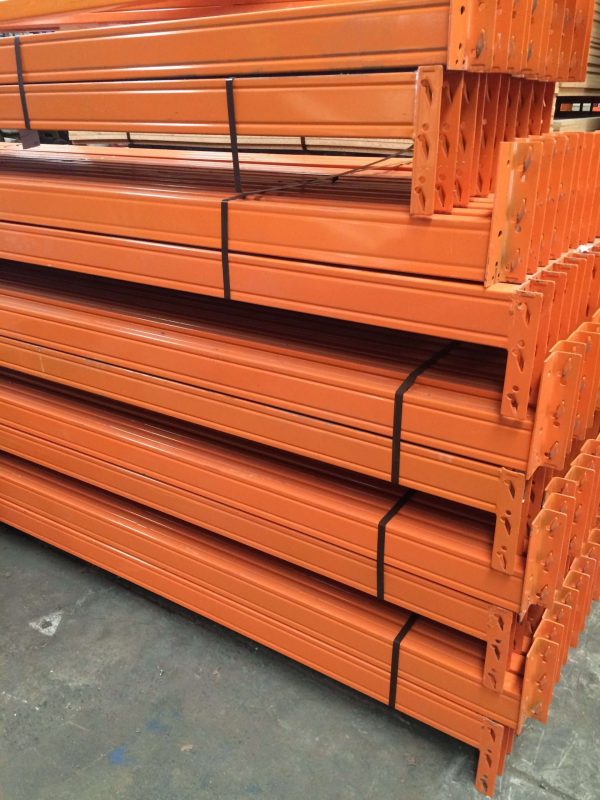

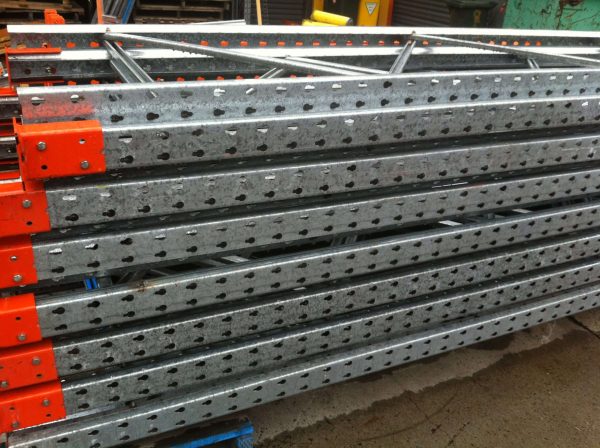

Description Selective Racking is used by most business’ to maximize their space and storage capabilities. Selective Racking allows quick and easy access to every pallet. Pallets are able to be accessed by almost any fork lift and can be located, accessed and moved individually. Selective Racking allows rapid handling of palletized goods. Each shelf level can be easily adjusted. This means the racking can suit different pallet heights, and maximize all available space. Selective Racking is free standing and very easy to assemble. With Clip in beams and self-engaging safety locks. Shelf heights are adjustable within 50mm intervals. Selective Racking can either be single sided or back to back. Each bay consisting of two pallets wide, with an initial free standing bay and adjoining or add on units. Frame Height Frame Depths 910 (3ft) 1800 (6ft) 2100 (7ft) 2400 (8ft) 3050 (10ft) 3650 (12ft) 4200 (14ft) 4800 (16ft) 5400 (18ft) 6100 (20ft) 450mm 600mm (2ft) 840 (standard Pallet) 1220mm Other Sizes Available upon Request Standard Beam Sizes Other Beam Sizes 1372mm (1 pallet wide) 1524mm (1 pallet wide) 1829mm 2133mm 2438mm 2590mm (2 pallets wide) 2740mm (2 pallets wide) 3048mm 3350mm 3658mm 3810mm 4267mm 1829 (6ft) 2134 (7ft) 2433 (8ft) 3050 (10ft) 3650 (12ft) 4267 (14ft) Other Sizes Available upon Request Note: Beam measurements are taken from the inside, i.e. the distance between the uprights The most common method of storing pallets is Selective Pallet Racking, ideal where flexibility, access and speed are the main objectives of the system. Selective Racking can also be easily adjusted or relocated at any time. Selective Racking is free standing and very easy to assemble.
